Road Surface Milling Machine Belting

IBL Logo Watermark - 2022.gif

Infinity Belting supplies Milling Machine Belting to suit all makes and models of milling machines.

​

State of the art design ensures that you’ll receive only the best milling machine belts. We stock a full line of superior belting styles compatible with all major OEM models of road milling machines.



What makes our milling machine belting durable also makes them reliable:

  • High strength rubber compounds stand up to sharp and heavy impacts

  • Molded cleats eliminate cleat separation from belt covers

  • Rip resistant fabrics

  • Abrasion resistant covers and cleats​

  • Stabilizing center profile enables quieter and smoother operation on the return belt side

  • Metric sizes available

  • Sizes for all manufacturers

  • 1" high cleats for large material carrying capacity

  • Composition and construction of belting, transports materials as efficiently as possible

​

Superior Wear Life

The composition of our belts ensures they will stand-up to the daily rigors of your asphalt and surface reclamation operation.



No matter the material size, speed of operation or operating temperatures, our milling machine belting will keep you going and get the job done.

Road-Surface Milling Machine Belt profiles available:

MOLDED U-CLEAT

6" cleat centers - Metric widths available

Trapezoid Cleat.gif

20" CLEAT PATTERN

  • 24" minimum belt width

  • 1/2" or 1" cleat height

  • 1-1/4" cleat base width

  • Base belt recommended is 2-ply 220# 5/32" x 3/32" for smaller pulleys

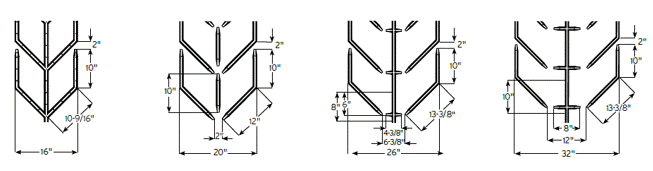

MOLDED V-CLEAT

12" cleat centers - Metric widths available

26" CLEAT PATTERN

  • 36" minimum belt width

  • 1/2" or 1" cleat height

  • 1-1/4" cleat base width

30" CLEAT PATTERN

  • 42" minimum belt width

  • 1/2" or 1" cleat height

  • 1-1/4" cleat base width

Vee Cleat.gif

16" CLEAT PATTERN

  • 24" minimum belt width

  • 1/2" cleat height

  • 1-3/16" cleat base width

  • 1/2" high continuous stabilizing center profile

  • Base belt recommended is 2-ply 220# 5/32" x 3/32" for smaller pulleys

20" CLEAT PATTERN

  • 30" minimum belt width

  • 1" cleat height

  • 1-1/4" cleat base width

  • 1" high stabilizing center profile

26" CLEAT PATTERN

  • 36" minimum belt width

  • 1" cleat height

  • 1-1/4" cleat base width

  • 1" high continuous stabilizing center profile

32" CLEAT PATTERN

  • 42" minimum belt width

  • 1" cleat height

  • 1-1/4" cleat base width

  • 1" high continuous stabilizing center profile

Milling Machine Belting image 1.jpg
 - Contact Information -
Please provide your contact details
 - Milling Machine Belting Order -
Please provide the information below to have your Milling Machine Belting needs handled quickly and on budget

Select Preferred Belt Profile and Size

Thank you for contacting us

- We will be in touch with you shortly -

STEEP CLIMBER CLEATS

Cleats: 1-1/2" high x 3/4" wide

Trapezoid Cleat.gif

MILLING MACHINE BASE BELT

> 2-PLY 220# PIW 5/32" top cover x 3/32" bottom cover (.375" gauge, 1.375" with Cleat)

​

> 2-PLY 400# PIW 5/32" top cover x 3/32" bottom cover (.394" gauge, 1.394" with Cleat)

​

> 3-PLY 225# PIW 5/32" top cover x 3/32" bottom cover (.420" gauge, 1.420" with Cleat)

DUROCLEAT™ MOLDED CHEVRON

Cleats: 1/4" high x 3/8" wide

CLOSED CHEVRONS

Cleats: 3/8" high x 3/8" wide

Multi Cleat .gif
Full Width Cleat.gif
IBL-Sale Strip Image_edited.jpg

Road-Surface Milling Machine Belting is one of our specialities. Talk to our team to get your belting done right and on budget.

Contact us today for all your Milling Machine Belting needs.

​
